You can reliably support about 15 lb per square foot on a wall‑mounted cabinet shelf if you follow KCMA guidelines, choose solid wood or steel, keep the shelf thickness at least ¾ inch, and space supports no more than 24 inches apart. Use studs or heavy‑duty anchors, add center supports or edge reinforcement, and limit overall deflection to 1/16 in per foot. Proper installation and material selection keep sagging and warping in check, and the next sections will show you how to verify and boost those limits.
How Much Weight Can a Wall Cabinet Shelf Support?
When you evaluate a wall‑cabinet shelf’s load capacity, start with the KCMA benchmark of 15 lb per square foot and a maximum deflection of 1/16 in per linear foot, which translates to roughly 600 lb for a full overhead unit. You then compare that figure to the typical 30–50 lb per linear foot rating for wall cabinets, noting that a 24‑inch span can sustain about 50 lb before deflection exceeds the limit. Choose ¾‑inch plywood or solid hardwood for higher rigidity; metal shelves add tensile strength. Install adjustable metal clips (≈25 lb each) and use 3‑inch No. 10 screws to maximize capacity. Finally, factor in aesthetic finishes and lighting integration, ensuring that added hardware or LED strips do not shift load distribution or compromise deflection tolerances. Consider material durability when selecting shelf components to ensure long‑term performance. Space constraints often dictate whether cabinets or open shelving are more appropriate for a given area. Properly assessing traffic flow helps avoid door interference and maximizes functional space.
【Premium Quality Material】The shelf brackets constructed of hi-q stainless steel, material features high hardness, corrosion and rust resistance, strong and durable properties ensure long service life.
【High Quality Metal】: This heavy duty shelf bracket is made of high-quality solid metal steel, coated with a matte black finish, with a sleek and modern look. Rust-proof, corrosion-resistant, and smooth edges to prevent scratches during installation. Suitable for all kinds of DIY projects and long-term use
No punching and self-adhesive: Shelf bracket, support the board without nails. Peel off the protective film on the back and stick it on a smooth surface, suitable for all styles of cabinets without leaving unsightly holes and marks on the cabinets
What Factors Determine Cabinet Shelf Load Capacity?
Because cabinet shelf strength hinges on four interrelated variables—material, construction method, shelf dimensions, and hardware support—evaluating load capacity requires a systematic breakdown of each factor. You’ll first assess material: solid wood and steel outclass particleboard or MDF, whose strength scales with thickness and support spacing. Next, examine construction: dovetail joints, welded frames, and reinforced under‑structures add rigidity, while solid face frames boost bearing capacity. Third, measure dimensions: shorter, thicker shelves resist sagging; deeper shelves increase leverage strain, so keep depth within design limits. Finally, verify hardware: heavy‑duty hinges, brackets, and center supports prevent warping and distribute load evenly. Remember, an aesthetic finish and color coordination don’t affect strength, but they influence your selection of materials and hardware. For optimal durability, consider material density when choosing between wood and metal options. Additionally, consulting the manufacturer’s specified load limit can prevent overloading and ensure safety. Oak and maple hardwood shelves often outlast metal alternatives due to their superior intrinsic strength.
Why Base Cabinets Have Higher Shelf Load Capacity Than Wall Cabinets?
Although wall cabinets rely solely on studs and fasteners, base cabinets gain a distinct advantage from their dual anchoring to both wall and floor, which distributes weight through the building’s structural framework rather than concentrating it on a single mounting plane. You’ll notice that load distribution in base units follows a broader, lower path that engages floor joists, reducing stress on any one point. Anchor selection matters: coarse 3‑inch No. 10 screws and sturdy floor brackets create a redundant support network, whereas wall cabinets depend on single‑plane fasteners that limit capacity. Data from the Kitchen Cabinet Manufacturers Association shows base cabinets routinely hold 300‑500 lb, sometimes up to 600 lb, while wall units cap near 25 lb per metal clip. This structural disparity explains the higher shelf load capacity of base cabinets. Properly installing the cabinet with stud detection ensures the load is transferred safely to the building’s framing. Utilizing modular shelving further enhances flexibility and space optimization in garage storage layouts. Selecting cabinets with reinforced side panels can significantly increase overall durability.
How Shelf Thickness and Material Influence Load Capacity?
Base cabinets already benefit from dual anchoring, but the real limiter of how much you can load a shelf is its thickness and material. When you increase thickness by 10 %, strength jumps roughly 21 %, so a 7/8‑inch shelf is 36 % stronger than a 3/4‑inch one. The section modulus formula S = bd²/6 shows that a 0.335‑inch board just meets a 50 psf load over a 22‑inch span. Material choice drives the modulus of elasticity (E); a composite panel with E = 313 000 psi cuts the maximum span to 21.99 inches versus 22.99 inches for a stiffer wood. Load rating calculations use S = M/450; for a typical KCMA load of 15 psf, S ≈ 0.224 in³. Choosing higher‑E engineered wood or plywood lets you keep thickness low while preserving load rating, whereas particleboard requires thicker sections to hit the same rating. Properly locating studs and using grade‑appropriate anchors ensures the cabinet remains stable under load. Understanding the gauge‑thickness relationship helps you balance durability, weight capacity, and cost. Selecting the right material density further optimizes load performance.
[Plenty of Storage] Keep your cooking essentials, such as spice jars, containers, cans, cutlery, and cookbooks organized, easily visible, and quick to find with these kitchen organizers and storage. They can also serve as a small food table for cats
[Plenty of Storage] Keep your cooking essentials, such as spice jars, containers, cans, cutlery, and cookbooks organized, easily visible, and quick to find with these kitchen organizers and storage. They can also serve as a small food table for cats
[Plenty of Storage] Keep your cooking essentials, such as spice jars, containers, cans, cutlery, and cookbooks organized, easily visible, and quick to find with these kitchen organizers and storage. They can also serve as a small food table for cats
How Shelf Span and Center Supports Affect Sagging and Strength?
When you increase a shelf’s span, its rigidity drops roughly in proportion to the length gain, so a 10 % longer span reduces stiffness by about 10 % and raises the sagging risk. You can quantify sag by the 0.02″ per foot target; visible deflection appears near 0.03″ per foot, and a 3‑ft shelf shows 0.09″ sag. Adding a center support changes the load distribution: it effectively halves the unsupported length, allowing the same material to carry over twice the weight of two shorter, unsupported sections. Edge reinforcement—such as a 1‑inch oak band—further stiffens the perimeter, raising the effective span capacity. Fixed side and back panels, together with center leg braces, reduce mid‑span bowing, keeping long‑term creep within acceptable limits. Properly selecting shelf thickness and material density can also improve load‑bearing performance, especially when combined with adjustable mounting brackets for fine‑tuned positioning. Ensuring the cabinet sits on a level floor prevents uneven stress that can accelerate sagging. Understanding load distribution is essential for designing durable shelving systems.
【Curtain Rods Material】: made of hign quality iron material which with strong hardness, sprayed with elegant black paint on the exposed parts to provent rust. It's very durable and not easy to break, curtain rod bracket has a thick and strong metal structure that can support greahtter weig, you can use it both indoor and outdoor.
【Curtain Rods Material】: made of hign quality iron material which with strong hardness, sprayed with elegant brown paint on the exposed parts to provent rust. It's very durable and not easy to break, curtain rod bracket has a thick and strong metal structure that can support greahtter weig, you can use it both indoor and outdoor. In addition, there may be slight color differences between the pictures and the actual products. This is because color adjustment is required for each production, so there will be certain differences in each batch. Please understand. Thank you!
FITS ROD DIAMETERS — These over blinds curtain rod brackets designed for 1 inch rods. Does not fit 1-1/4" rods. These extra long curtain rod holders are ideal for large windows, heavy curtains, and extended rod setups.
KCMA Standards for Cabinet Shelf Load Capacity (15 lb/ft Rule)
If you follow the KCMA A161.1 guidelines, every shelf and cabinet bottom must sustain a uniform load of 15 lb per square foot for seven days without exceeding a deflection of 1/16 in per linear foot (max 1/4 in overall). The standard translates to a pressure of 718 Pa, applied uniformly to prevent bridging and to simulate typical storage conditions. You’ll measure deflection with calibrated instruments, ensuring no joint separation or visible damage. This data‑driven test validates cabinet ergonomics by confirming that shelves remain level under load, which directly supports warranty compliance. The same 15 lb/ft rule governs drawer bottoms for up to 35,000 cycles, reinforcing structural integrity across the entire unit. Material durability also varies significantly, influencing long‑term performance and maintenance needs. Proper ventilation is essential to avoid overheating when a microwave is placed inside a cabinet, and the airflow clearance requirement should be checked during installation. Because storage cabinets are movable objects designed to support human activities, they are classified as furniture under standard definitions.
Proper Cabinet Installation: Studs, Blocking & Anchors
The 15 lb/ft load test shows that a shelf must stay flat under a uniform pressure of 718 Pa, but the test alone doesn’t guarantee the cabinet will stay anchored to the wall. First, locate studs with a finder and mark their centerlines; most homes use 16 in. on‑center spacing. Align the cabinet’s mounting rail with these lines (stud alignment) and pre‑drill to avoid splitting. Use two to three‑inch #8 or #10 screws, driving at least 1½ in. into each stud, with a minimum of two screws per stud. For heavy units, replace with ¼‑in. lag screws. If the cabinet doesn’t line up, install horizontal blocking (2×4, 2×6, or ¾‑in. plywood) between studs at the top and bottom, securing it with angled deck screws. When studs aren’t available, select appropriate anchors—EZ‑anchors for drywall, toggle bolts for metal studs—but never rely on anchors alone; they must supplement a stud‑based attachment. This systematic approach ensures code compliance and load safety. Proper blocking provides guaranteed wood for screws regardless of cabinet back location. Proper anchoring also helps meet building code requirements for stability. Adding a wall anchor checklist during planning can prevent mismatched hardware choices.
Mounting a TV to steel studs doesn’t have to be a headache. This kit is built specifically for metal stud walls commonly found in apartments and commercial spaces, providing a safe and secure install for TV and mount combinations up to 175 lbs.
VERSATILE FOR MULTIPLE USES: Perfect for mounting clocks, picture frames, mirrors, shelves, and more on drywall. A reliable, all-in-one kit for every room in the house or workspace—bathrooms, bedrooms, kitchens, living rooms, and basements, using fixion tools drywall anchors kit.
Complete 160-Piece Kit for All Your Hanging Needs: Includes 80 heavy-duty steel self drilling drywall anchors (0.47x1.18inch) and 80 hardened screws, all neatly organized in a durable plastic storage box. No more searching for mismatched hardware - everything you need is ready in one kit for picture frames, shelves, curtain rods, wall decor, and more
Quick Checklist to Verify Your Cabinet Shelves Meet Load Requirements
Even before you start loading a shelf, run through a concise, data‑driven checklist: confirm the material (3/4‑in. engineered wood or plywood) and its modulus of rupture, verify the span length and corresponding per‑foot capacity per KCMA standards, guarantee uniform weight distribution, and note any additional supports such as rods or molding that raise the load ceiling.
Next, apply the quick checklist for load verification: measure the shelf’s span, compare it to KCMA’s 15 lb/sq ft limit, and calculate per‑lineal‑foot capacity (e.g., 75 lb/ft at 1 ft, 30 lb/ft at 6 ft+). Check the wood type—White Oak at 15,200 psi, Walnut at 14,600 psi—to confirm adequate bending resistance. Confirm that decorative molding or support rods are present; each rod adds roughly 45–50 lb, with three rods supporting a 34‑in. bracket and four or more for spans beyond 50 in. Finally, verify that weight is evenly spread to keep deflection under 1/16 in. per lineal foot and overall under 1/4 in.
Extendable length - twist the rod to adjust the length from 15.7" to 28" according to the length of your cupboard, closet, refrigerator or other place where need bars
Size - The positioning cylindrical dowel pin is M2 (2mm / 0.08") in diameter and 28mm / 1.1" in overall length. Cylindrical design ensures stability while enabling quick and efficient installation/removal, even in confined spaces.

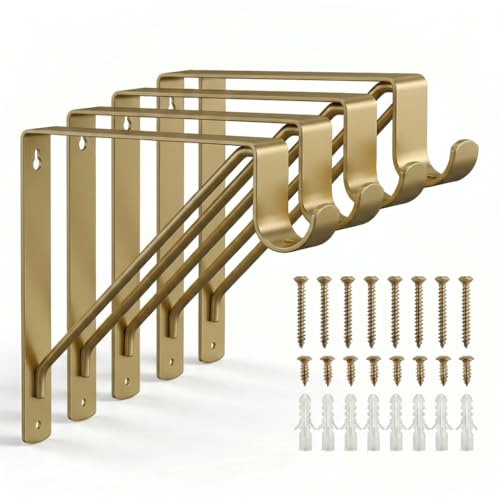

SAY GOODBYE TO SAGGING CLOSET RODS: Stop settling for flimsy plastic clips or bending wire racks. Engineered with a reinforced 1-piece triangle structure, our heavy-duty closet rod brackets provide ultimate center support for heavy winter coats and loaded 12" shelf boards. Safely holds up to 300 lbs per pair without deforming.
